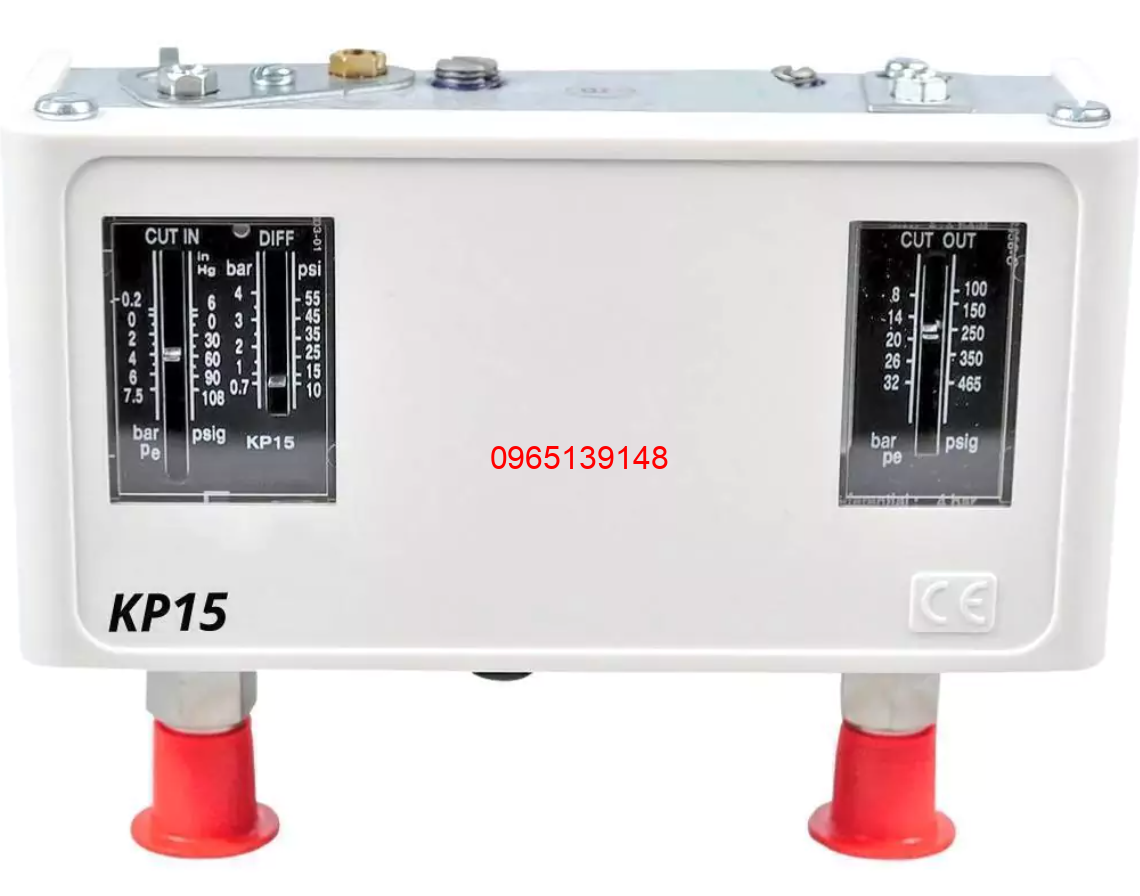

Low and High Pressure Differential Pressure Switch Type KP15 Automatic Reset 1/4″ SAE – AZQ044

Type KP pressure switches are optimized for light and heavy commercial refrigeration, offering excellent protection against low suction pressure or high discharge pressure. Type KP pressure switches are used to start and stop refrigeration compressors and fans in air-cooled condensers.

For which model/machine?

Commonly used in commercial and industrial refrigeration equipment.

Technical Information:

Brand: Chiller Parts;

Model: AZQ044;

Technical Information Low Pressure Switch:

Adjustment range: 6PSIG (0.2bar) – 108PSIG (7.5bar);

Max Differential Pressure: 108 psi;

Min Differential Pressure: 6 psi;

Pressure connection size: 1/4″ SAE;

Reset: Automatic;

Allowable fluid temperature: -10°C / +110°C;

SPDT contact mechanism.

Technical Information High Pressure Switch:

Adjustment range: 100PSIG (8.00bar) – 465PSIG (32.00bar);

Max Differential Pressure: 464 psi;

Min Differential Pressure: 100 psi;

Pressure connection size: 1/4″ SAE;

Reset: Manual 43PSI (3bar);

Allowable fluid temperature: -10°C / +110°C;

SPDT contact mechanism.
